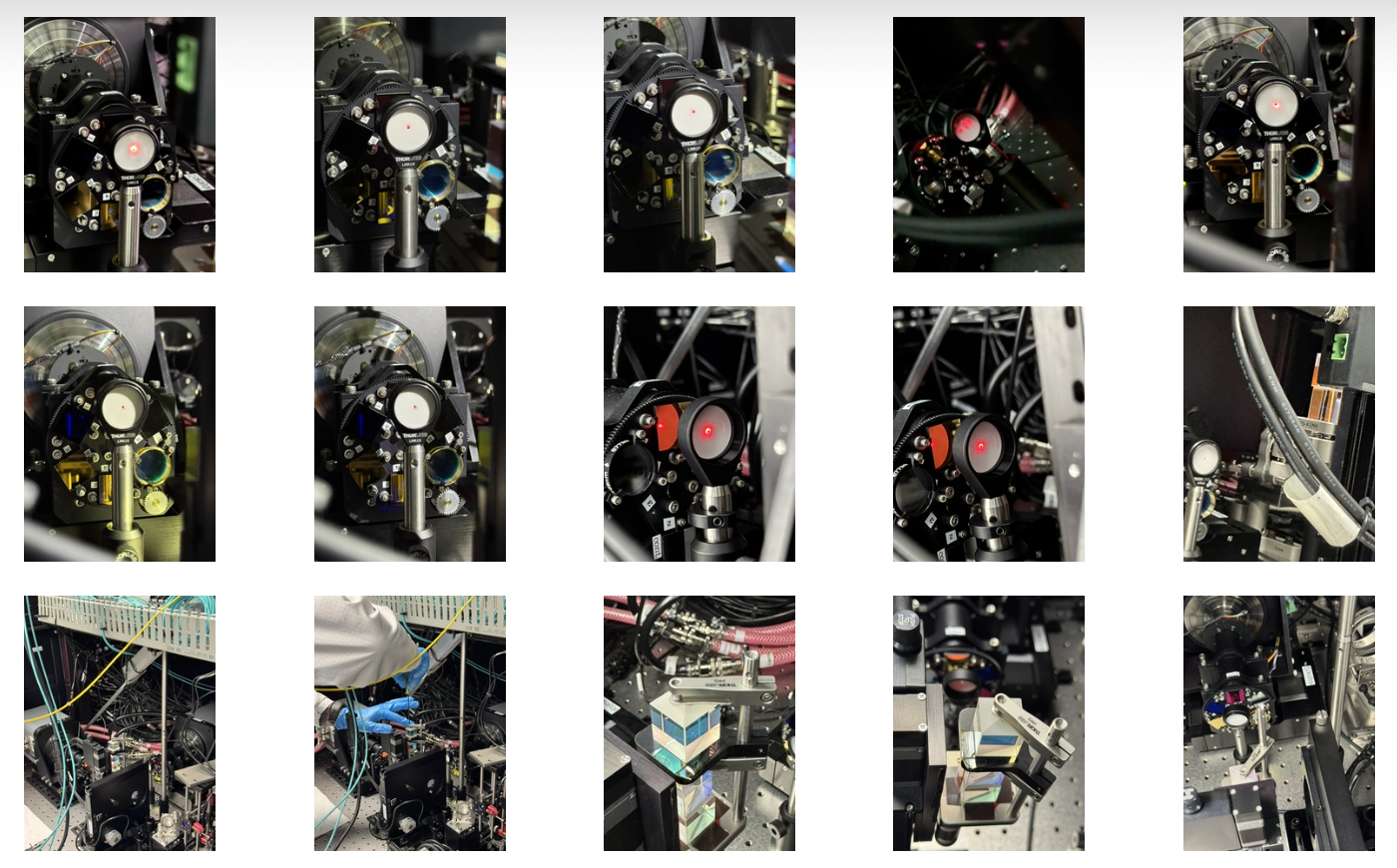

You know it’s optical alignment day when you open your camera roll to write a blog post and it just looks like this:

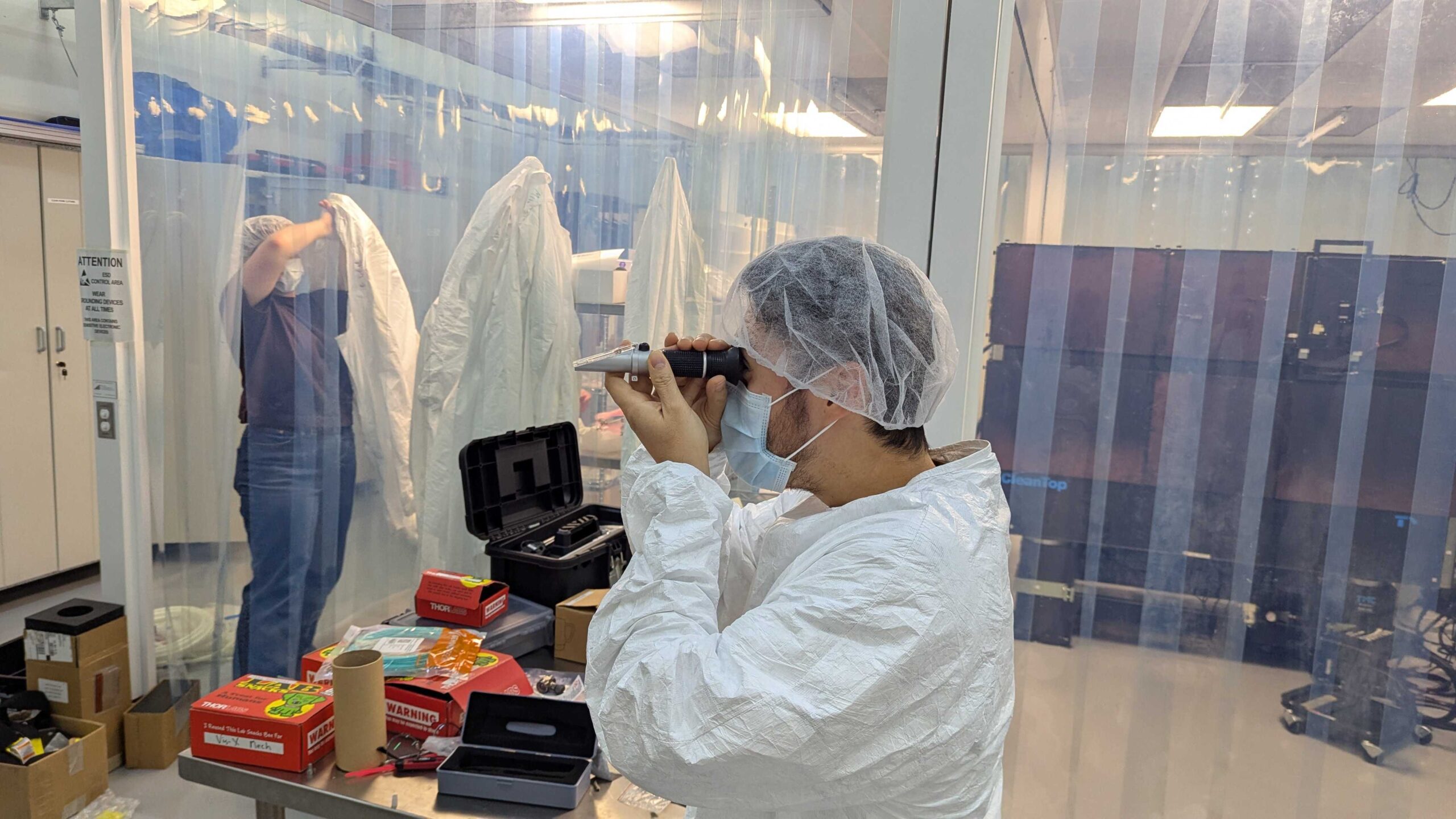

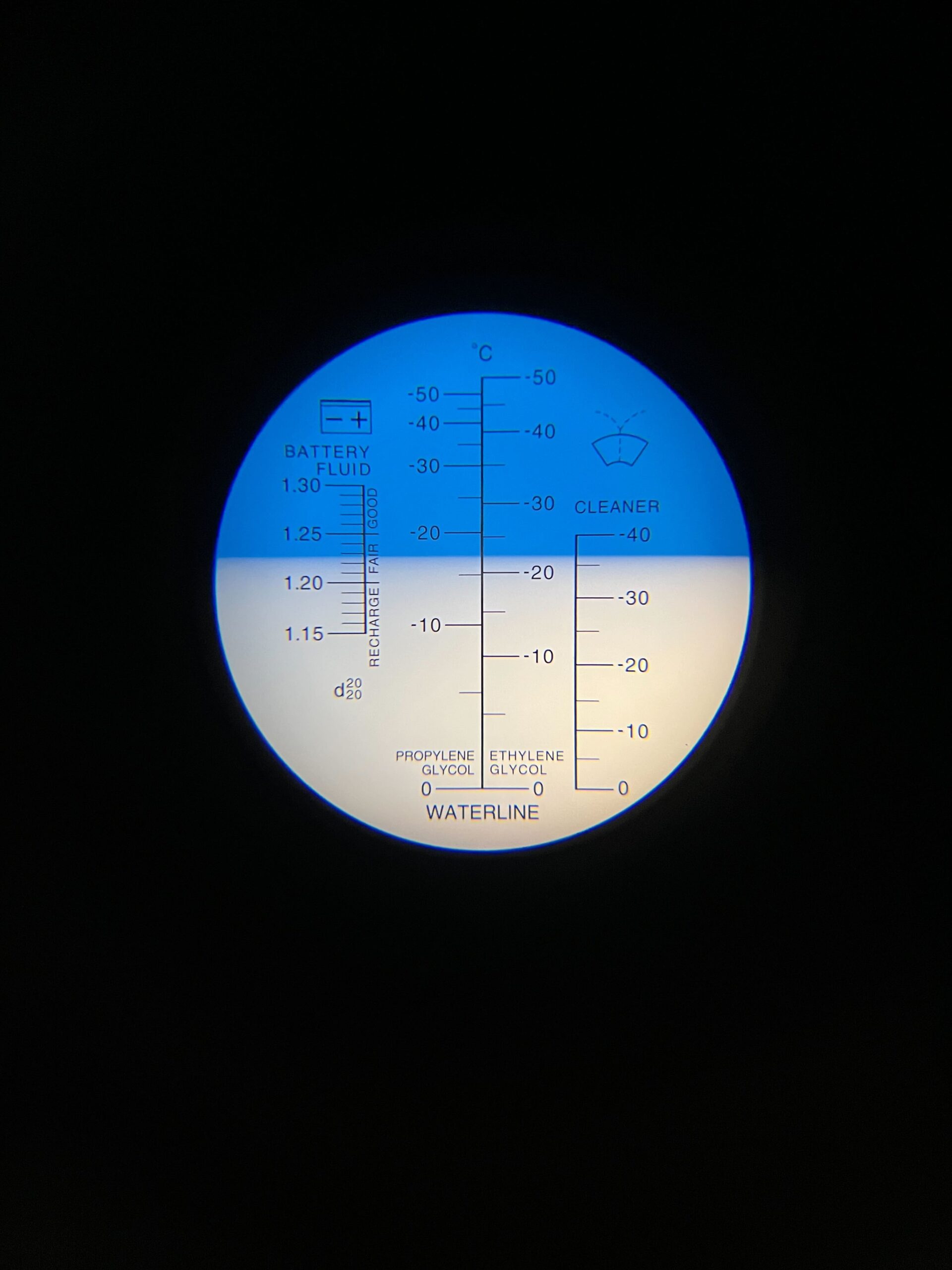

It’s been an all-hands-on-deck kind of day. Our activities have ranged from the very low-tech (cardboard tubes) to the very high-tech (new infrared camera in the visitor port) to the sort-of-medium-tech (refractometer to measure glycol concentration). While all that’s going on, at any given moment there are a handful of graduate students in the library furiously writing code to do any number of things when we go on-sky soon.

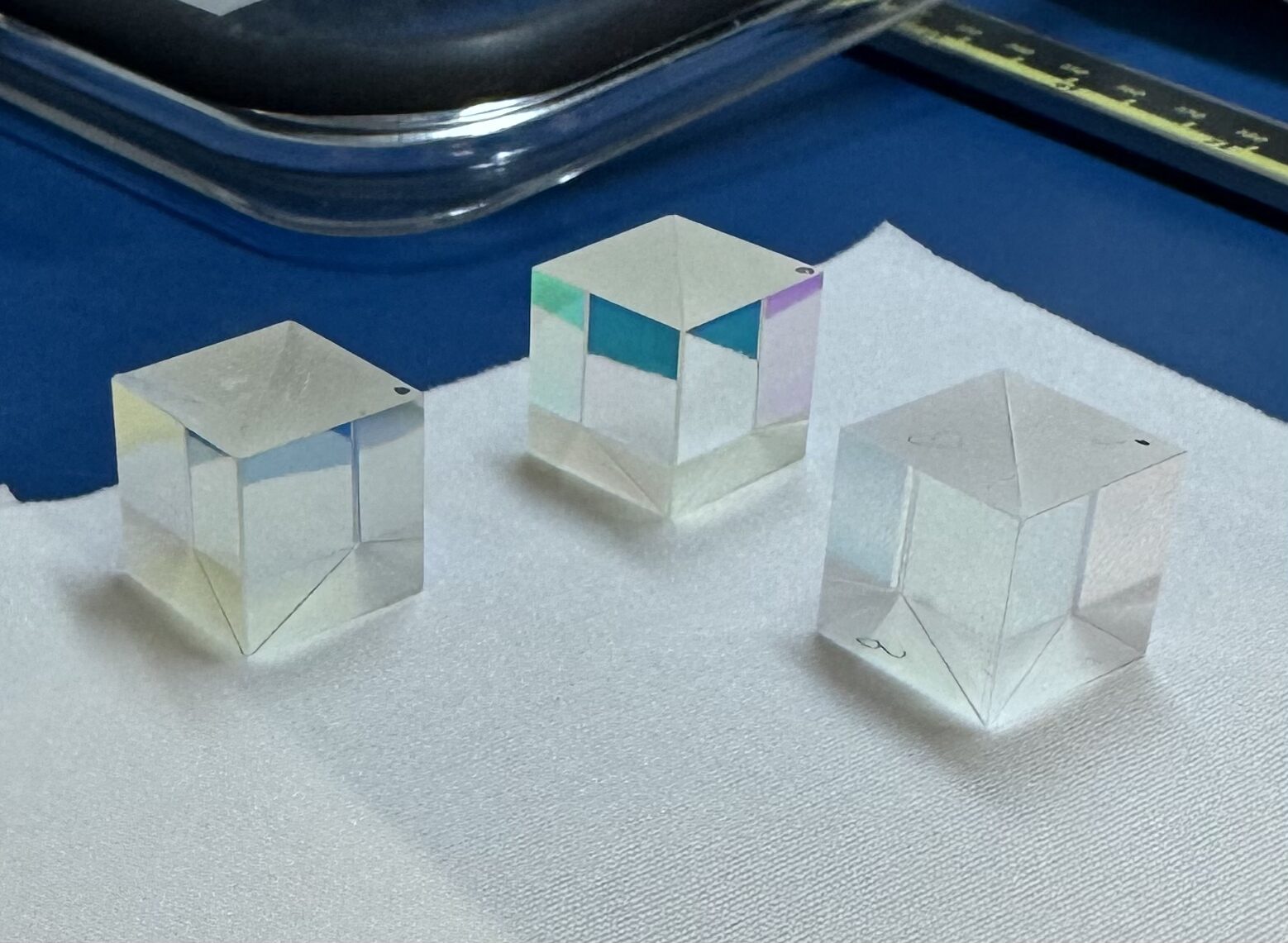

This morning, Laird and I monopolized the instrument to obsess over cubes. MagAO-X has three different science beamsplitter cubes, which allow us to create an image on two cameras at once. Last run, we replaced our old 50-50 beamsplitter with an r-i beamsplitter, which gets us more throughput by splitting the beam by color rather than just sending half in each direction. A couple days before heading down to Chile, we noticed the r-i cube behaving oddly, so today we took a crack at fixing it. Long story short, we learned two things:
1. If your clamp is too loose, bad things happen.
2. If your clamp is too tight, worse things happen.
Around lunchtime, we got some really exciting news: the infrared camera from our Durham collaborators finally made it onto the mountain! My roommate Viktoria and I swapped spots, and the joint Durham/Leiden team has been gowned up in the cleanroom working tirelessly all afternoon/evening.

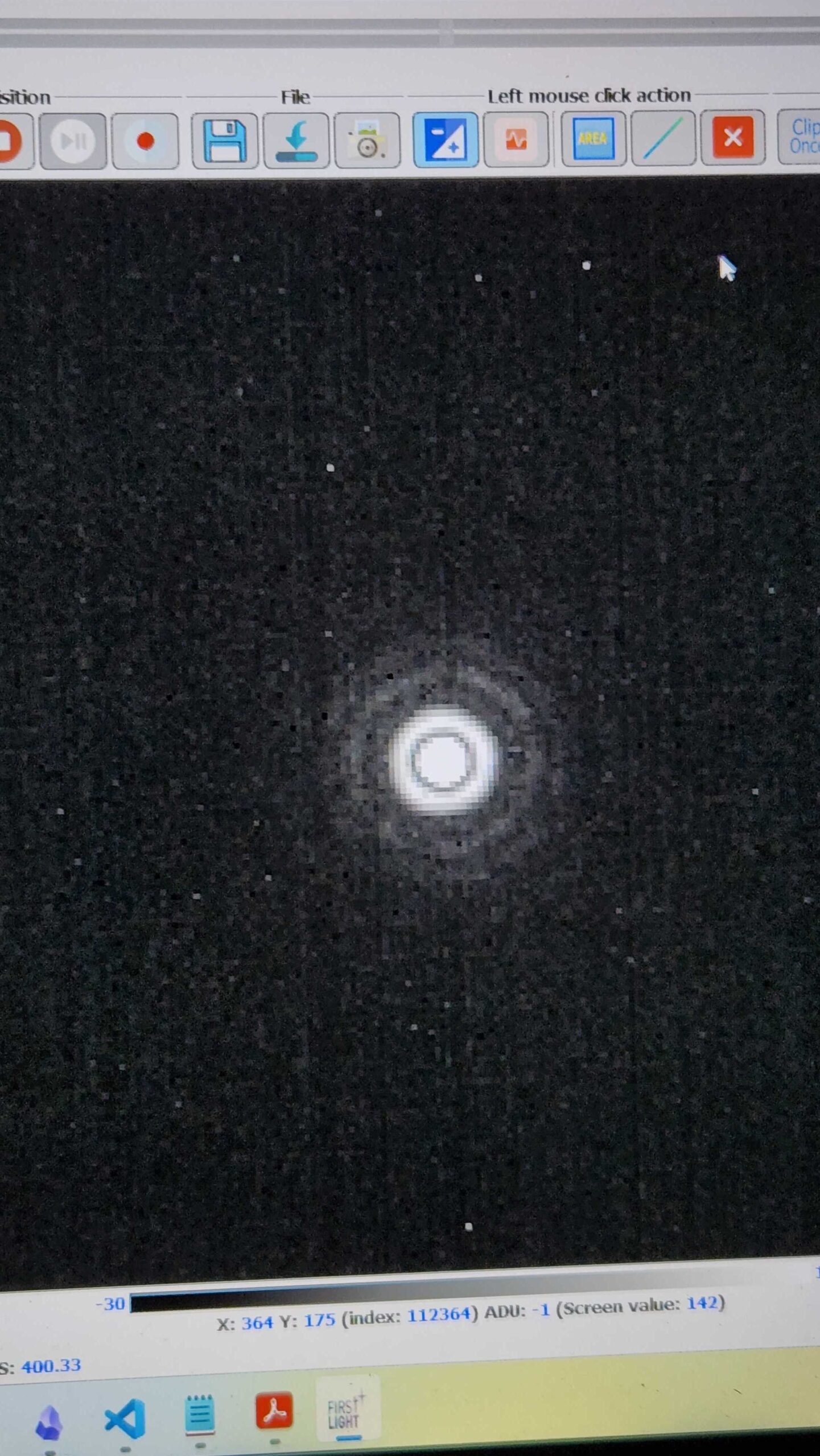

And, there’s nothing better than getting to see the fruits of your labors:
Now that’s an Airy disk if I’ve ever seen one.
Honestly, I think this means the color of the day should technically be “infrared.” But humans, unlike snakes, can’t see that far into the electromagnetic spectrum, so I present to you: beamsplitter-cube green – a color that makes an appearance on the left side of the middle cube in this photo.
